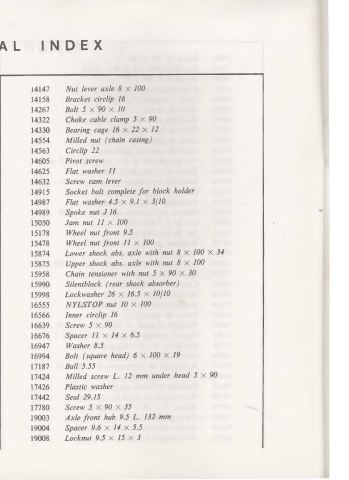

Page 64 - Mobylette Type M3PR

NUMERICAL 1 ND EX

14147 Nut lever axle 8 X 100
3 Ball 5 mm

4 Washer 6.5 mm x 12 X 10/10 14158 Bracket circlip 16
14267 Boit 5 X 90 X 10
5 Ball 3.96 mm
9 Nut (, mm X 100 X 10 X 4 14322 Choke cable clamp 5 X 90
lO Nut 6 mm X 100 X 10 X 6 14330 Bearing cage 16 x 22 X 12
11 Nut 7 mm X 100 X 10 X 6 14554 Milled nut ( chain casing)
14563 Circlip 22
26 Bearing 15 X 35 X 11
34 Greaser 5 X 75 14605 Pivot screw
52 Washer 5.2 14625 Flat washer 11
57 Washer 6.2 X 10 X 1 14632 Screw cam lever
14915 Socket boit comp/ete for b/ock ho/der
79 Nut 5 X 90 X 8 X 4
198 Nut 8 X 100 X 12 X 4.5 14987 Flat washer 4.5 x 9.1 X 3/10
208 Boit 6 X 100 X 21 14989 Spoke nut J 16
15050 Jam nut 11 X 100
223 Ball 6.35
580 Lock nut front hub 11 X 100 15178 Wheel nut front 9.5
679 Boit 6 X 100 X 15 15478 Whee/ nut front 11 X 100
716 Cable end with screw 4 X 75 15874 Lower shock abs. ax/e with nut 8 X 100 X 34

797 BLOCFO R washer 6 15875 Upper shock abs. ax/e with nut 8 X 100
874 NOMEL washer 5 15958 Chain tensioner with nut 5 X 90 X 30
878 Nut 6 X 100 15990 Silentblock ( rear shock absorber)
1087 Nut 4 X 75 15998 Lockwasher 26 x 16.5 x 10/ JO

1088 NOMEL washer 4 16555 NYLSTOP nut 10 X 100
16566 Inner circ/ip 16
1113 NOMEL washer 7
1171 NOMEL washer 5 16639 Screw 5 X 90
1172 NOMEL washer 6 16676 Spacer 11 x 14 X 6.5
16947 Washer 8.5
1376 Washer 6.5 X 16 X 10/10
16994 Boit ( square head) 6 X 100 X 19
1422 NOMEL washer 8
1430 Nut 4 X 70 17187 Ball 5.55
17424 Milled screw L. 12 mm under head 5 X 90
1485 Nut 5 X 80 X 8 X 4
17426 Plastic washer
1511 Brake lever nut 5 X 80
1525 NOMEL washer 6 x Jl 17442 Sea/ 29.15
17780 Screw 5 X 90 X 35
1545 Flat washer 6.5 x 14 X 15/10
19003 Axle front hub 9.5 L. 132 mm
8802 Boit 4 X 75 X 6
8884 Screw 5 X 90 x 8 19004 Spacer 9.6 x 14 X 5.5
19008 Locknut 9.5 X 15 X 3
10599 Boit 7 X 100 X 24
30
