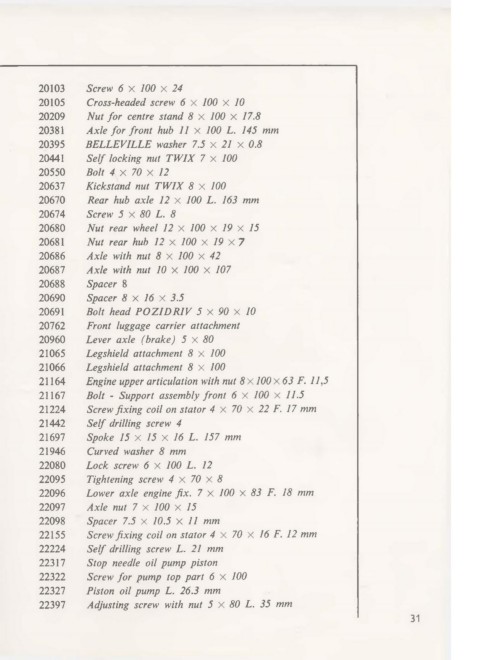

Page 66 - Mobylette Type M3PR

19009 Nut 9.5 X 16 X 5 20103 Screw 6 X 100 x 24

19010 Flat washer 9.6 x 20 x 20/ JO 20105 Cross-headed screw 6 x 100 x JO
19049 Screw 6 X 100 x 75 20209 Nut for centre stand 8 X 100 X 17.8
19061 Needle cartridge 16 X 20 X 21 20381 Axle for front hub 11 X 100 L. 145 mm
19084 Need/e cartridge 11 X 14 X 14 20395 BELLEVILLE washer 7.5 X 21 X 0.8
19088 Gasket - crankcase 20441 Self /ocking nut TWIX 7 X 100
19092 Flat washer 6.2 X 10.6 x 12/10 20550 Boit 4 X 70 X 12

19097 Gasket barrel joint 20637 Kickstand nut TWIX 8 x 100
19098 Gasket cy/inder head 20670 Rear hub ax/e 12 X 100 L. 163 mm
19100 Gasket in/et pipe 20674 Screw 5 X 80 L. 8
19102 Cy/inder screw 6 X 100 X 25 20680 Nut rear whee/ 12 X 100 X 19 X 15
19105 Flywhee/ Iock nut 14 x 100 20681 Nut rear hub 12 X 100 X 19 X 7

19108 Washer under nut 22.2 X 40 X JO/ JO 20686 Axle with nut 8 X 100 X 42
19122 Nut JO X 100 20687 Axle with nut 10 X 100 X 107
19162 Spacer 8.2 X 14.1 X JO/ JO 20688 Spacer 8
19166 Stud in/et pipe 6 x 100 20690 Spacer 8 X 16 X 3.5
19167 Screw 6 x 100 X 17 20691 Boit head POZIDRJV 5 x 90 X 10
19168 Screw 6 x 100 X 30 20762 Front luggage carrier attachment

19174 Washer 7.2 X 14.1 X 10/10 20960 Lever ax/e (brake) 5 X 80
19249 Screw 4 x 70 X 8 21065 Legshield attachment 8 X 100
19286 Rear whee/ axle 12 X 100 L. 150 mm 21066 Legshield attachment 8 X 100
19290 Nut 12 X 100 X 19 X 10 21164 Engine upper articulation with nut 8 X 100 X 63 F. 11,5

19291 Lock nut 12 X 100 X 19 X 5 21167 Boit - Support assembly front 6 X 100 X 11.5
19292 Flat washer 20 X 12 X 2 21224 Screw fixing coi/ on stator 4 X 70 X 22 F. 17 mm
19294 Washer 29 X 20.5 x 4/10 21442 Self dri//ing screw 4
19359 Spoke nut J 15 21697 Spoke 15 x 15 x 16 L. 157 mm
19467 Washer 21.6 X 13.5 X 8/10 21946 Curved washer 8 mm
19501 Needle cartridge (pulley) 15.8 X 12.8 X 18 22080 Lock screw 6 X 100 L. 12

19538 Spacer 14 X 9.2 X 10.7 22095 Tightening screw 4 X 70 X 8
19594 Axle with nut 8 X 100 X 20 22096 Lower axle engine fix. 7 X 100 X 83 F. 18 mm
19645 Crankshaft bearing 17 X 47 X 14 22097 Axle nut 7 x 100 X 15
19651 Screw 4 X 70 X 7 22098 Spacer 7.5 x 10.5 X 11 mm
19661 NOMEL washer (large series) 8 22155 Screw fixing coi/ on stator 4 X 70 X 16 F. 12 mm

19750 Spoke 14 x 14 x 15 L. 183 mm 22224 Self drilling screw L. 21 mm
19755 Spoke 15 X 15 X 16 L. 172 mm 22317 Stop needle oil pump piston
20055 Tightening stem screw with cone L. 160 mm 22322 Screw for pump top part 6 X 100
20059 Adjuster boit front brake 6 X 100 22327 Piston oil pump L. 26.3 mm
20099 Tightener rod 6 X 100 ~ 14 22397 Adjusting screw with nut 5 X 80 L. 35 mm
31
